Guided Exploration of Physically Valid Shapes for Furniture Design


Nobuyuki Umetani     Takeo Igarashi     Niloy J. Mitra

The University of Tokyo      JST ERATO       University College London

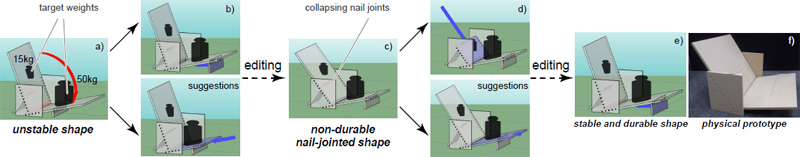

Geometric modeling and physical validity of shapes are traditionally considered independently. This makes creating aesthetically pleasing yet physically valid model challenging. We propose an interactive design framework for efficient and intuitive exploration of geometrically and physically valid shapes. During geometric editing operation, the proposed system continuously visualizes the valid range of the parameter being edited. When one or more constraints are violated after an operation, the system generates multiple suggestions involving both discrete and continuous changes to restore validity. Each suggestion also comes with an editing mode that simultaneously adjusts multiple parameters in a coordinated way to maintain validity. Thus, while the user focuses on the aesthetic aspects of the design, our computational framework helps to achieve physical realizability by providing active guidance to the user. We demonstrate our framework for plank-based furniture design with nail-joint and frictional constraints. We use our system to design a range of examples and also fabricate a physical prototype to test the validity and usefulness of the design.


fast forward : [YouTube]


paper: pdf (37.1M)


Nobuyuki Umetani, Takeo Igarashi, Niloy J. Mitra, "Guided Exploration of Physically Valid Shapes for Furniture Design", SIGGRAPH 2012 (conditional accept). [bibtex]
